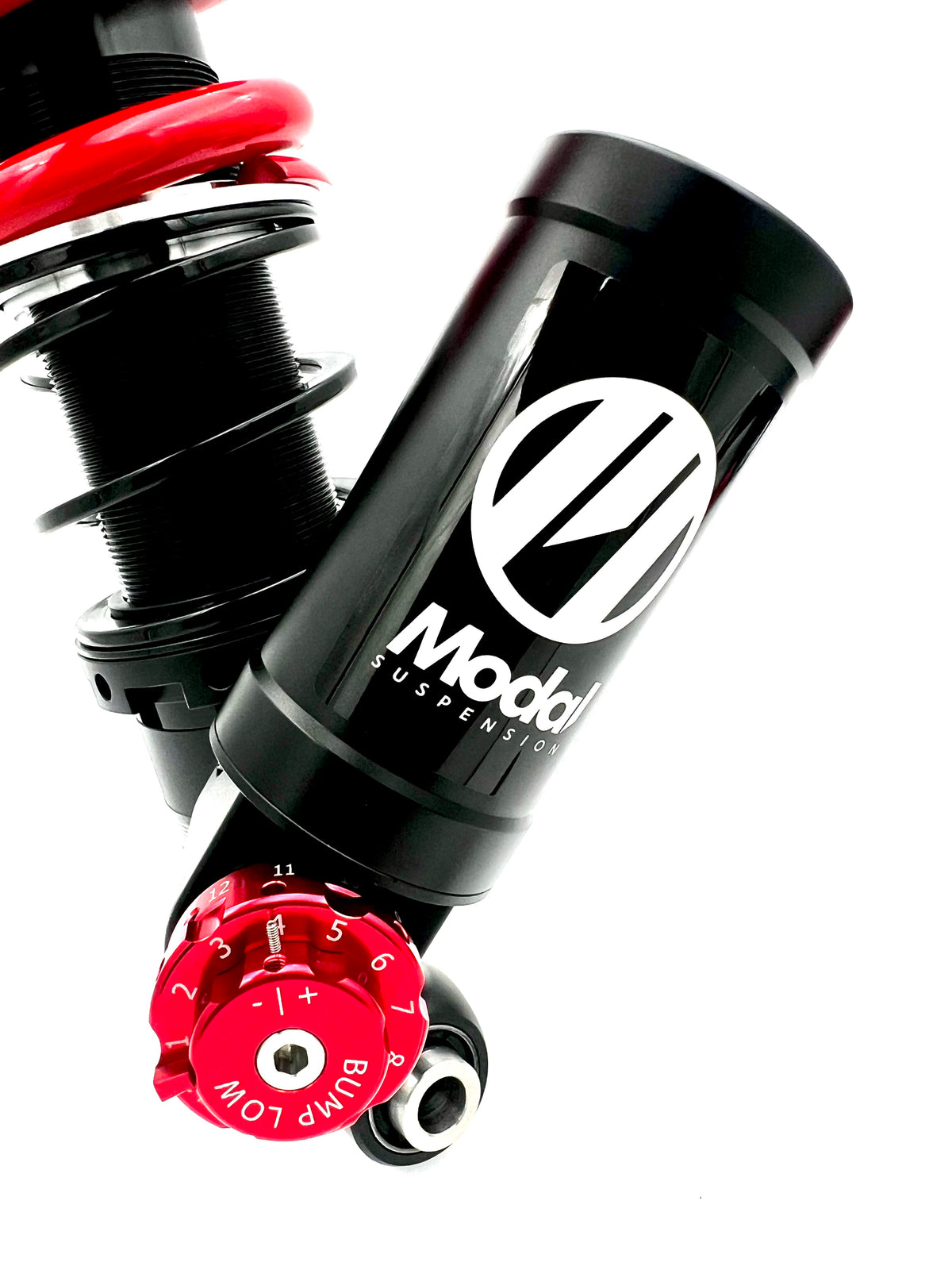

Modal M3 Triple Adj Suspension

Special Order: Lead times are normally 4-6 weeks, but at certain times may be slightly longer.

Maximum Suspension Control — Without Making It Difficult to Use  The Modal M3 brings full 3-way damper control to the Lotus Emira in a package designed around the car, its modifications and how it will be driven. Modal combines sophisticated piston technology, 46mm monotube dampers and independent rebound, low-speed compression and high-speed compression adjustment with clearly marked 1–12 settings that make serious suspension tuning approachable for the enthusiast owner. Found on the Lotus Emira Bathurst edition

Custom Designed Around Your Emira

• Sophisticated Internal Piston Design
• Allows Modal to tune both linear and progressive damping characteristics.
• Custom Spring & Damper Specification
• Each kit can be developed around the vehicle, its modifications and intended use.

Benefit: The M3 is not simply an adjustable damper that fits the Emira. It is a suspension package configured around how your car is actually used.

Maximum Control. Easy to Keep Track Of.

• Independent Rebound, Low-Speed Compression & High-Speed Compression
• Three separate adjustments give you precise control over different areas of chassis behavior.

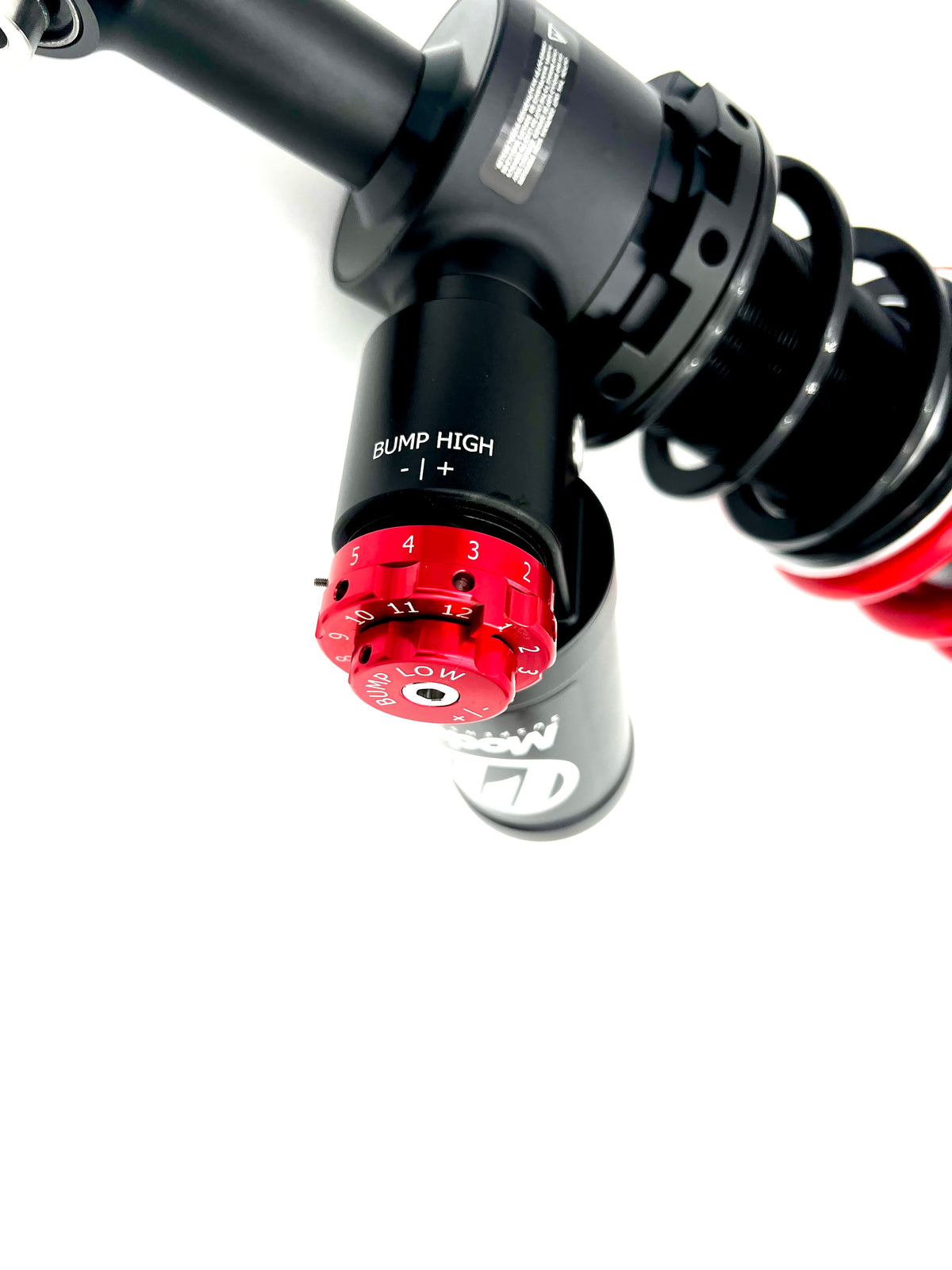

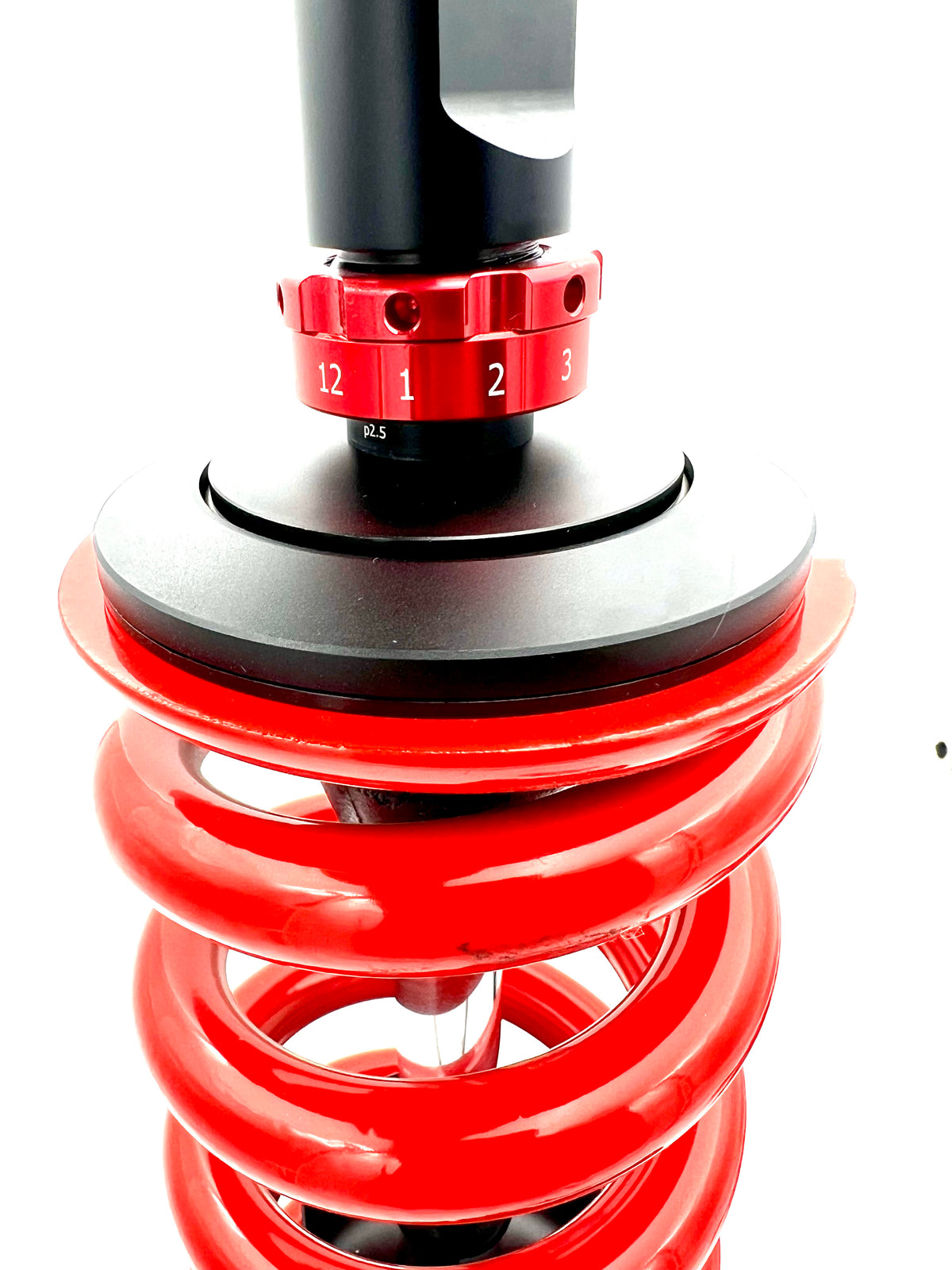

• Clearly Marked 1–12 Adjusters
• You can see your setting directly on the damper instead of relying on memory or counting clicks.
• 12 Defined Positions Per Adjustment
• Enough range to make meaningful setup changes while remaining easy for an owner to understand and repeat.

Benefit: Serious tuning capability that can still be managed by an enthusiast without a race engineer or trackside crew.

Built for Serious Use

• 46mm Monotube Dampers
• A substantial damper platform designed for consistent control under demanding road and track use.
• Hard-Anodized Aircraft-Grade Aluminum Construction
• Provides strength, thermal stability, corrosion resistance and wear resistance while avoiding unnecessary weight.
• External Reservoirs
• Allow independent high- and low-speed compression adjustment while increasing available fluid volume.

Benefit: Motorsport-level hardware with the durability and consistency required for repeated hard use.

Street or Track — Without Starting Over

• Separate Street and Circuit Baseline Settings
• Modal provides defined starting points for different uses, giving owners a logical foundation for adjustment.
• Wide Range of Damping Control
• The same suspension can be tuned toward road compliance or increased track control without changing hardware.

Benefit: Drive the car on the street, make a few straightforward changes for a track day, and then return to your road setup with confidence.

Designed for the Emira

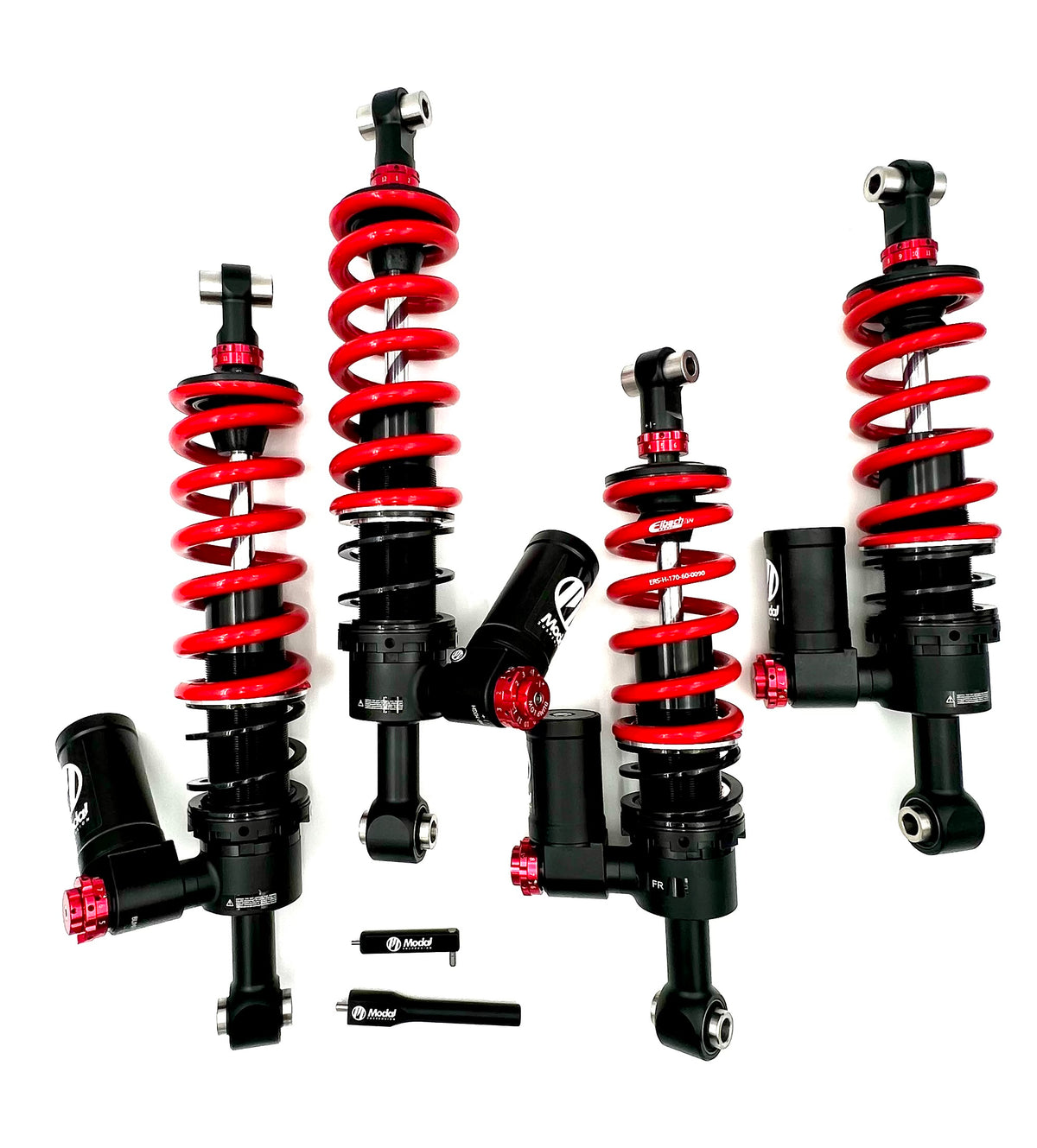

• Vehicle-Specific Front and Rear Dampers
  • The kit is designed around the Emira chassis rather than being a generic coilover adapted to fit.
• Emira-Specific Setup Guidance
  • Modal provides baseline ride-height, droop and damper settings to help establish a proper starting point.

Benefit: You start with a developed system and useful setup information instead of a box of adjustable dampers and a blank sheet of paper.

Model Compatibility

• '23 Emira V6

• '25 Emira i4

Note: Image(s) used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.
